China Solid Shaft RV Gear Reducer Impact Resistance E Series For Robot wholesale

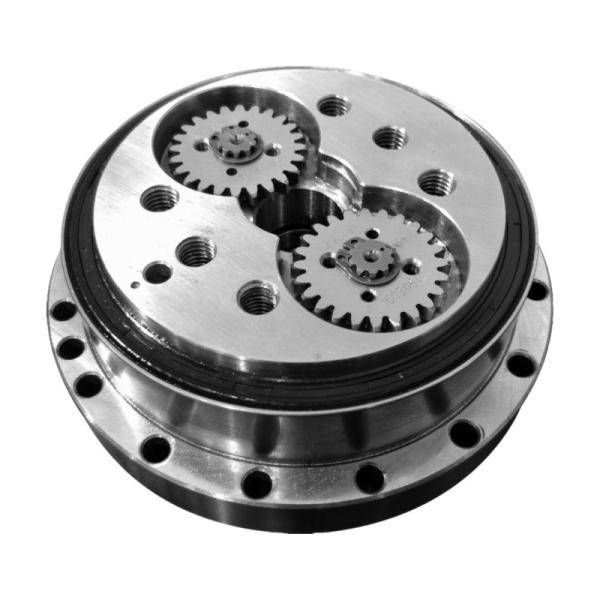

Solid Shaft RV Gear Reducer Impact Resistance E Series For Robot

Name: Solid Shaft RV Gear Reducer Impact Resistance E Series For Robot
Brand: Giant Precision
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Giant Precision

Model Number :RV - E

Certification :ISO9001

Place of Origin :Jiangsu, China

MOQ :1 set

Price :To Be Negotiated

Payment Terms :T/T

Supply Ability :20000 Sets per Month

Delivery Time :3-4 Weeks

Packaging Details :Carton Box

Product :Solid Shaft E Series RV Reducer

Material :Steel, Aluminum

Torsional Rigidity :372 to 7448 Nm/arc.min.

Rated torque :167 to 4410 Nm

Output Torque :17 to 450 Nm

Lost motion :MAX. 1 Arc.min.

Rated output speed :15 r/min

Model :BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E

Weight :4.7 to 66.4 kg

Color :Sliver

Design life :6000 hours

Warranty :1 Year

Contact Now

Add to Cart

View Product Description

Solid Shaft Good Rigidity And Strong Impact Resistance E Series RV Reducer

RV reducer are used for the three joints of the waist and elbow of the leg of the robot with large torque, and the industrial robot with large load uses RV for one, two and three axes. Compared with the harmonic reducer, the key to the RV reducer lies in the processing technology and assembly process. RV reducer has higher fatigue strength, stiffness and life.

Key Features

Zero Backlash: One of the key features of RV reducers is their zero-backlash operation, ensuring accurate positioning and smooth motion transmission.
High Precision: RV reducers provide high precision and repeatability, making them suitable for applications that require precise motion control.
High Torque Capacity: Despite their compact size, RV reducers can handle high torque loads, making them suitable for demanding applications.
Low Noise and Vibration: They operate with low noise and vibration levels, ensuring smooth and quiet operation, which is essential in many applications, including robotics and automation.

Specifications

	Specification	Output Torque kgf-m(Nm)
	20	17(167)
	40	42(412)
	80	80(784)
	110	110(1078)
	160	160(1568)
	320	320(3136)
	450	450(4410)

Parameters table of RV - E series

Model	Torsional Rigidity	Dimension(mm)		Rated torque (T0)	Rated output speed (N0)	Torsional stiffness	Lost motion		Backlash	Allowable bending torque (Nm)	Allowable thrust load (N)	Weight (kg)
Model	Nm/arc.min.	a	b	Rated torque (T0)	Rated output speed (N0)	Nm/arc.min.	arc.min	Determining rotational speed (Nm)	Arc.min.	Allowable bending torque (Nm)	Allowable thrust load (N)	Weight (kg)
BX20E	372	20.1	113.3	167Nm	15 r/min	49	MAX1	±5.00	MAX1	882	3920	4.7
BX40E	931	29.6	143.7	412Nm		108		±12.3		1666	5194	9.3
BX80E	1176	33.4	166	784Nm		196		±23.5		2156	7840	13.1
BX110E	1470	32.2	176.6	1078Nm		294		±32.3		2940	10780	17.4
BX160E	2940	47.8	210.9	1568Nm		392		±47.0		3920	14700	26.4
BX320E BX320E3	4900	56.4	251.4	3136Nm		980		±94.0		7056	19600	44.3
BX450E	7448	69	292.7	4410Nm		1176		±132.0		8820	24500	66.4

Detailed Images

Key Attributes of RV - E Series Solid Shaft RV Reducer
Product	Solid Shaft RV Reducer
Material	Steel, Aluminum
Standard ratio	57 to 160
Output Torque	17 to 450 Nm
Torsional Rigidity	372 to 7448 Nm/arc.min.
Rated torque	167 to 4410 Nm
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	833 to 22050 Nm
Rated output speed	15 r/min
Model	BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E
Weight	4.7 to 66.4kg
Design life	6000 hours
Warranty	1 year

Application

Vertical Articulated Robot Shaft Drives
SCARA, Pick & Place
Machine Head Indexer
